Introduction To Key Signatures

In this guitar lesson we’re going to talk about a concept called key signatures. These are especially important to understand if you intend to read standard notation fluently. But even if you’re a staunch TAB only reader, learning about key signatures is helpful because it lays the foundation for some other theory that we’ll cover later on.

Some Review

If you filled out the table from the Understanding The Major Scale lesson, then you might have noticed the following things…

  • There are 15 different major scales.
  • The C Major scale doesn’t use any sharps or flats.
  • There are 7 major scales that use sharps.
  • There are 7 major scales that use flats.

One interesting thing is that no major scale shares the same number of sharps or flats. To see what I mean, please check out the following table that shows all the major scales that use sharps…

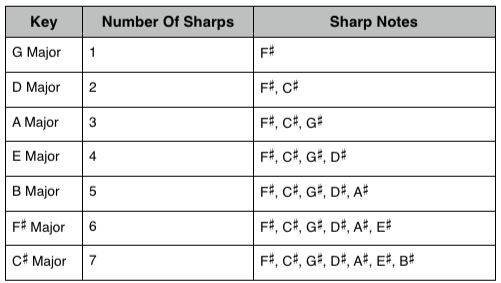

Sharp Major Scales Tables

Introducing Key Signatures

It’s extremely hard to explain key signatures without introducing at least a little bit of music notation. For this reason, I’m going to use some standard notation for this part of the lesson. Although I won’t be explaining how to read music, I’ll do my best to explain things in a way that is understandable for the TAB only guitarists.

Let’s imagine that we wanted to write out the F# major scale using standard notation. It would look something like this…

F# Major Scale: No Key Signature Used

F# Major Scale: No Key Signature

As you can see, I’ve written the note names above the notation, just in case you don’t read standard notation.

Now let’s write out the exact same scale, but this time we’ll use a key signature…

F# Major Scale: Key Signature Used

F# Major Scale: Key Signature Used

Notice how in this version of the scale there are six sharp signs written at the very beginning. This is called a key signature, and it tells us the following things…

  • The key that the piece of music is written in. Because the key signature shows six sharps, then this tells us that the music is in F# major.
  • Unless told otherwise, all the notes shown in music must adhere to the key signature. For Example: Because the key signature contains an F#, this means that all the F notes shown in the music must be played as F# notes.

As well as telling music readers what key a piece of music is in, using a key signature also…

  • Makes the music less cluttered, and easier to read.
  • Makes the process of writing out music much less laborious.

Key Signatures For The Sharp Keys

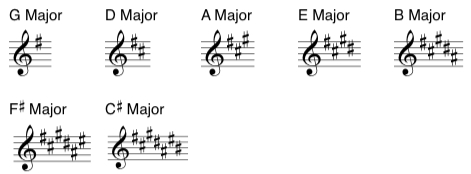

For your reference, here are all the key signatures for the major scales that use sharps. I need to stress that you don’t have to memorize these unless you intend to read a lot of standard notation.

Key Signatures: Sharp Keys

Key Signatures For The Flat Keys

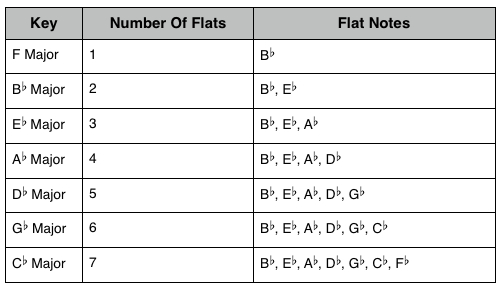

The key signatures for the major scales that contain flats work in exactly the same way. But before we look at them, let’s look at all the flat major scale keys in table format…

Key Signatures: Flat Keys

Let’s check out an example of a key signature being used in standard notation. To do this we’ll use the Db Major scale as an example. Here it is written out…

Db Major Scale: No Key Signature Used

Db Major Scale: No Key Signature Used

And here’s the same scale written out using a key signature…

Db Major Scale: Key Signature Used

Db Major Scale: Key Signature Used

With key signatures that use flats, the key signature at the beginning tells us all the notes that have to be played as flats in the music. For Example: If we were to play a piece of music in the key of Db Major, then the Ab shown in the key signature tells us that absolutely all the A notes shown in the music need to be played as Ab. (Unless there something in the musical notation that says otherwise).

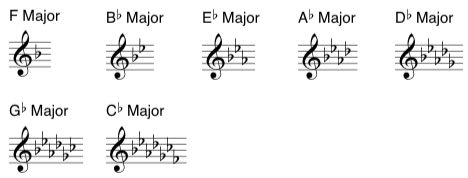

OK, let’s now check out the key signatures for all the major scales that use flats…

Key Signatures: Flat Keys

What About The C Major Scale?

Because the C Major scale doesn’t use sharps or flats, then it’s key signature would look like this…

C Major: Key Signature

Not a particularly exciting one is it? :-)

A Few Last Words

I you found this introduction to key signatures interesting. if you’re intending to learn to read and write standard notation, then it’s critical to know this stuff. Even if you want to stick with reading TAB only for now, there’s certainly no harm in knowing about the existence of key signatures.

Have fun!
